Quicklock scaffolding is a new type of convenient scaffolding, compared with other scaffolding, it has the following advantages.

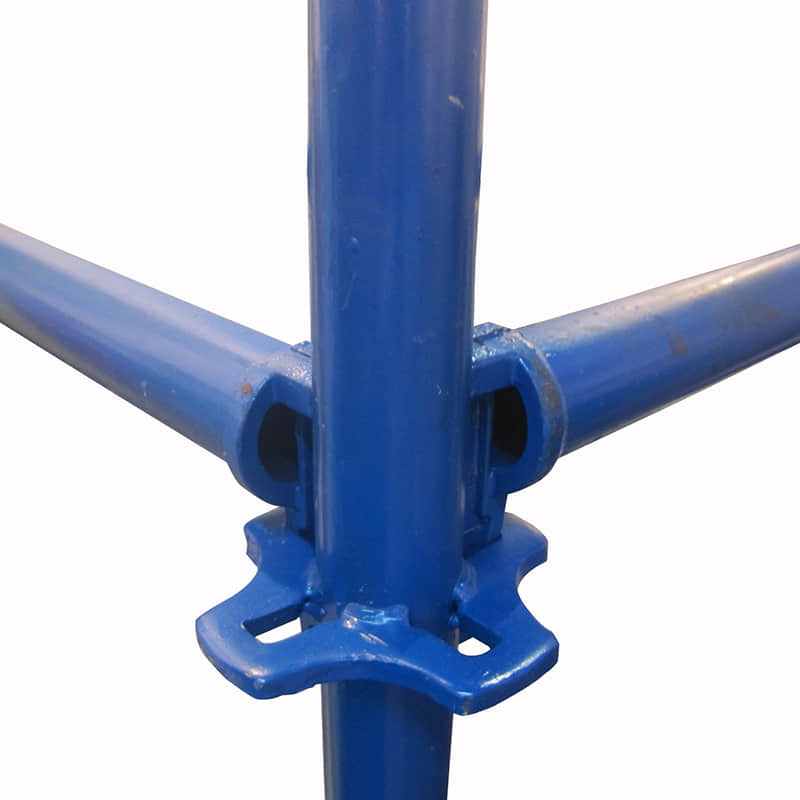

1, has a reliable two-way self-locking ability: one is the crossbar and upright in the connection piece of the locking function, mainly by the design of the structure to achieve and guarantee, reducing the traditional scaffolding by manual locking shortcomings, so that personnel this instability factor is minimised; two is in the same node at more than one crossbar and the same upright joint locking form from the traditional interlocking type into a single independent, mutual non-dry self-locking form. Traditional scaffolding at the same node, when a crossbar locking loose, the other crossbar and the upright bar locking will also be broken.
2、Economic and comprehensive good: without any movable spare parts, only by the uprights, crossbars two types of components, uprights, crossbars are all made in the factory, one is the maximum to prevent the traditional scaffolding activities spare parts easy to lose, easy to damage the problem of reducing the economic loss of the construction unit; two is without any movable locking parts, wheel buckle scaffolding in the use of each node by the tension and pressure is a reasonable distribution of the state The force nature of the scaffold is reasonable, ensuring its good rigidity and overall stability, preventing to the maximum extent possible the unsafe hidden danger caused by the traditional scaffolding on the movable locking parts.
3, more convenient and quicker installation: in use, only need to insert the two ends of the crossbar plug into the corresponding cone hole on the upright, and then knock tight can be, its speed and the quality of the lap is the traditional scaffolding can not do. The speed of erection and dismantling is 8-10 times that of fastening steel pipe scaffolding and more than 2 times that of bowl buckle scaffolding.
4、Large load-bearing capacity: the vertical cross accuracy of the axis line of the vertical pole and the axis line of the horizontal pole of the wheel buckle type multifunctional steel pipe scaffold is high, and the force nature is reasonable. Therefore, the bearing capacity is large, the overall stiffness is large, the overall stability is strong, and each upright bar is allowed to carry 3-4 tons. And the number of diagonal ties used is much less than traditional scaffolding.
5, with the use of multi-functional: wheel buckle multi-functional steel pipe scaffolding can be used with adjustable lower bottom bracket, adjustable upper bracket, double adjustable early demolition, pickets, pickets and other accessories, can be used with all kinds of steel pipe scaffolding with each other to achieve a variety of multi-functionality.
In addition, it has no moving parts, so it is easy and fast to transport, store, set up and dismantle, and the force performance is reasonable and can be adjusted freely; the product is standardised and packed, and the assembly is reasonable, so its safety and stability is better than bowl buckle and portal scaffolding.
Of course, even the best things have their drawbacks, the disadvantage of quicklock scaffolding is that it is not suitable for erection on the ground where the base is not hard, the ground is not flat and cannot be hardened by concrete; it is not suitable for erection directly on the ground where the soil is poor and the ground is prone to collapse; it can only be used as a floor scaffolding, not as a suspended scaffolding.
